Regular model incinerator for market with burning rate from 10kgs to 500kgs per hour and we always proposal customer send us their require details, like waste material, local site fuel and power supply, incinerator operation time, etc, so we can proposal right model or custom made with different structure or dimensions.
Incinerator Model YD-100 is a middle scale incineration machine for many different usage: for a middle hospital sickbed below 500 units, for all small or big size family pets (like Alaskan Malamute Dog), for community Municipal Solid Waste Incineration, etc. The primary combustion chamber volume is 1200Liters (1.2m3) and use diesel oil or natural gas fuel burner original from Italy.
Latest Post

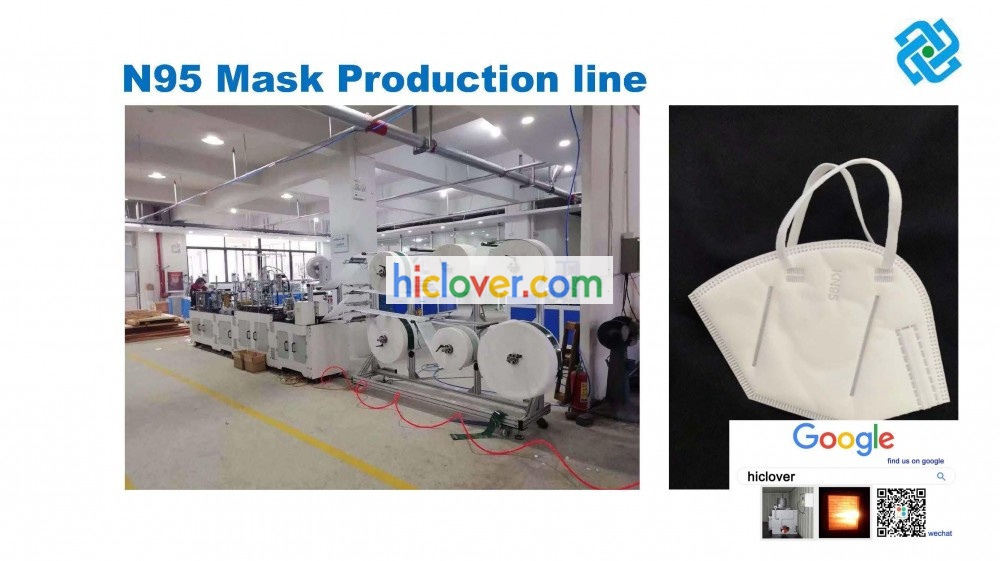

N95 Face Mask Machine Production Line on Sale Now!$250,000USD per set
N95 Face Mask Machine Production Line on Sale Now! $250,000USD per set![]()
l Dimension(L*W*H): 1037*855*1780
l Power Supply 15.3kw mono phase
l Net Weight: approx.: 1500kg
HICLOVER – Medical Environmental
Waste IncineratorsMedical Waste IncineratorPet Animal CremationSolid Waste Incinerator
Tel: +86-25-8461 0201Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]Nanjing Clover Medical Technology Co.,Ltd.2020-04-10
|WhatsApp: 008613813931455
Website1: www.hiclover.com
Open chat
Oil Pump Suction Line and Return Line on incinerator burner
on incinerator burner, there is 1 oil pump and have two tube for Suction Line and Return Line.
Pet Cremation Equipment
Basic Info.
Additional Info.
Product Description
The gas/oil burner of incinerator gear — Nov. 26, 2011
We provide incinerator and also burners. Some model of incinerator use Italy original burner (gas or oil fuel) and a few model use China original burner. Normally, incinerator with two burners but we could add one extra burner to enhance combustion capacity.
| Items/Model | TS10(PLC) | TS20(PLC) | TS30(PLC) | TS50(PLC) | TS100(PLC) |
| Burn Rate | 10 kg/hour | 20 kg/hour | 30 kg/hour | 50 kg/hour | 100 kg/hour |
| Feed Capacity | 20kg | 40kg | 60kg | 100kg | 200 kg |
| Control Mode | PLC | PLC | PLC | PLC | PLC |
| Combustion Chamber | 100L | 210L | 330L | 560L | 1200L |
| Internal Dimensions | 50x50x40cm | 65x65x50cm | 75x75x60cm | 100x80x70cm | 120x100x100cm |
| Secondary Chamber | 50L | 110L | 180L | 280L | 600L |
| Smoke Filter Chamber | Yes | Yes | Yes | Yes | Yes |
| Feed Mode | Manual | Manual | Manual | Manual | Manual |
| Voltage | 220V | 220V | 220V | 220V | 220V |
| Power | 0.5Kw | 0.5Kw | 0.5Kw | 0.7Kw | 0.7Kw |
| Oil Consumption (kg/hour) | 5.4–12.6 | 7.8–16.3 | 10.2–20 | 12.1–24 | 14–28 |
| Gas Consumption (m3/hour) | 6.2–11.4 | 8–15.7 | 9.8–20 | 9.9–26.1 | 10–32.2 |
| Temperature Monitor | Yes | Yes | Yes | Yes | Yes |
| Temperature Protection | Yes | Yes | Yes | Yes | Yes |
| Oil Tank | 100L | 100L | 100L | 100L | 200L |
| Feed Door | 30x30cm | 45x40cm | 55x50cm | 70x55cm | 80x60cm |
| Chimney | 3Meter | 3Meter | 5Meter | 5Meter | 10Meter |
| Chimney Type | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 1st. Chamber Temperature | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree |
| 2nd. Chamber Temperature | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree | 800degree–1000degree |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. |
| Gross Weight | 1500kg | 2200kg | 3000kg | 4500kg | 6000kg |
| External Dimensions | 140x90x120cm | 160x110x130cm | 175x120x140cm | 230x130x155cm | 260x150x180cm |
Medical Incineration (TS100 PLC)
Basic Info.
Additional Info.
Product Description
| Items/Model | TS100(PLC) |
| Burn Rate | 100 kg/hour |
| Feed Capacity | 200 kg |
| Control Mode | PLC |
| Combustion Chamber | 1200L |
| Internal Dimensions | 120x100x100cm |
| Secondary Chamber | 600L |
| Smoke Filter Chamber | Yes |
| Feed Mode | Manual |
| Voltage | 220V |
| Power | 0.7Kw |
| Oil Consumption (kg/hour) | 14–28 |
| Gas Consumption (m3/hour) | 10–32.2 |
| Temperature Monitor | Yes |
| Temperature Protection | Yes |
| Oil Tank | 200L |
| Feed Door | 80x60cm |
| Chimney | 10Meter |
| Chimney Type | Stainless Steel |
| 1st. Chamber Temperature | 800–1000 degree |
| 2nd. Chamber Temperature | 1000-1200 degree |
| Residency Time | 2.0 Sec. |
| Gross Weight | 6000kg |
| External Dimensions | 260x150x180cm |
Nanjing Clover Medical Technology Co., Ltd..
Plastic Waste Incinerator
Basic Info.
Additional Info.
Product Description
Pyrolytic incineration technical is traditional waste treatment way for many years. All around the world, in most countries, people anti incinerator because the incinerator will produce a large Dioxin from the smoke. “Dioxins” refers to a group of toxic chemical compounds that share certain chemical structures and biological characteristics. Dioxins can be released to the environment through forest fires, low cost plastic incinerator images, low-cost incinerator waste, LPG incinerator for sale, macau incinerator, madical waaste insinaraders nc, main parts of incinerator, backyard burning of trash, certain industrial activities, and residue from past industrial burning of waste. Dioxins break down very slowly and past releases of dioxins from both man-made and natural resources still exist in the environment. Anyhow, we must remind this, that is large scale incineration pant, generally greater than 30 ton per day. This is a societal issue, to analyze and suggest ways in various angles from the general public, government, economic growth, environmental protection, technology development, etc.
Key Features: * All models with Dual combustion chamber. * Stainless Steel chimney/stack, long life. *according to order * High fever, long life of incinerator. * Free or minimum installation on site. * High burn rate, from 10kgs to 500kgs per hour, up to 6ton per day. *based on order * New Design for pet animal cremation business. * One year warranty on incinerator and parts in stock.
| Items/Model | YD-10C | YD-20C | YD-30C | YD-50C |
| Burning Rate (kgs/Hour) | 10 kgs/Hr. | 20 kgs/Hr. | 30 kgs/Hr. | 50 kgs/Hr. |
| Feed Capacity (kgs) | 40 kgs | 40 kgs | 50 kgs | 80 kgs |
| Equipment Weight | 1200 kgs | 1200 kgs | 1800 kgs | 2200 kgs |
| Primary Chamber (Liters) | 200 | 200 | 250 | 400 |
| Secondary Chamber (Liters) | 140 | 140 | 140 | 140 |
| External Dimensions (cm) | 170x140x160 | 170x140x160 | 170x140x190 | 180x160x200 |
| Internal Dimensions (cm) | 55x55x65 | 55x55x65 | 55x55x85 | 70x70x85 |
| Oil Tank(Liters) | 50 | 100 | 100 | 150 |
| Door Opening (cm) | 38 x 48 | 38 x 48 | 38 x 48 | 45×55 |
| Chimney (M) | 5 | 5 | 5 | 5 |
| Chimney Type | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Secondary Chamber | YES | YES | YES | YES |
| Mix-Combustion Chamber | YES | YES | YES | YES |
| Smoke Filter Chamber | YES | YES | YES | YES |
| Combustion Fuel | Oil/Gas | Oil/Gas | Oil/Gas | Oil/Gas |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. |
| Temperature Monitoring | YES | YES | YES | YES |
