Description
Technical Specification

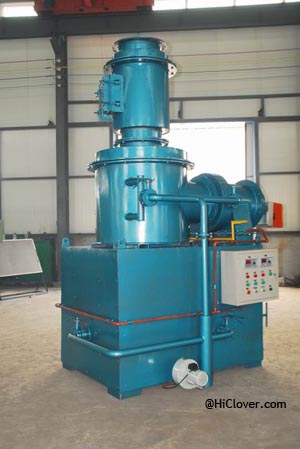

- Incinerator
| Fuel | Diesel Oil 8/ kerosene |
| Capacity (m3) | 0.57 |
| Ave Capacity | 50 kg per hour |
| Ave time for Burnout | 5 hrs |
| External Dimensions | |
| Length | 2000mm |
| Width | 1100mm |
| Height including flue | 3500mm |
| Door opening | |
| Internal Dimensions
(primary chamber) |
|
| Length | 1200mm |
| Width | 620mm |
| Height | 660mm |
| Operation | |
| Min. operating temperature | 9500C |
| Max. operating temperature | 13200C |
| Residency time in second chamber | 2.0 seconds |
| Weight | 1850kgs |
| Ancillaries | |
| Operating and maintenance manuals | |
| Recommended Spare list | |
| 300 liter fuel tank |
